This document provides a step-by-step guide to debug missing data issues in the GUI of the Analytics cluster.

Step 1: Verify Active LEF Connection on VOS Device

Objective: Confirm that the VOS device has an active LEF connection with the correct node.

Procedure:

• Log in to the Analytics Admin GUI.

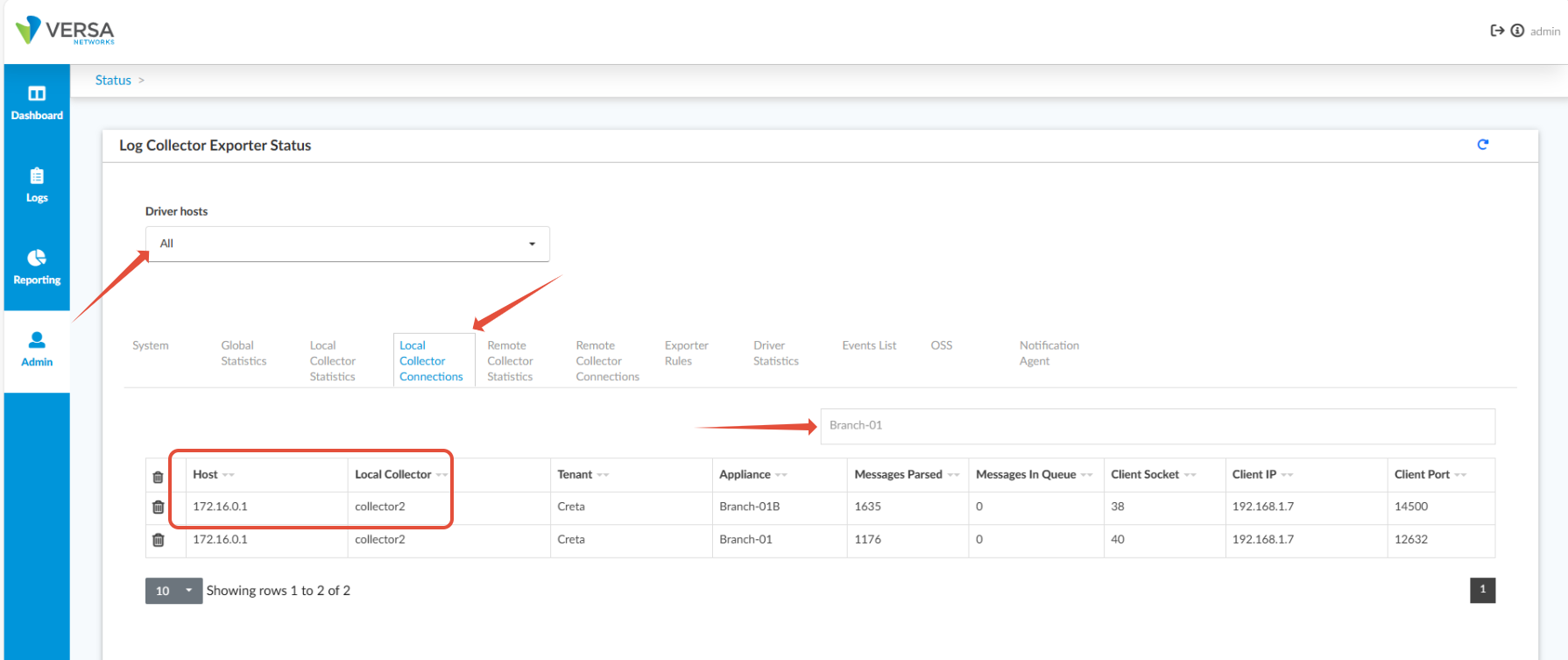

• Navigate to: Admin → System Status → Log Collector Exporter.

• On the Log Collector Exporter Status page:

  • Select ALL from the dropdown.

  • Go to the Local Collector Connections tab.

  • Verify that the device is listed and connected correctly.



Step 2: Check for Raw Logs for the Missing Date

Objective: Ensure raw logs were received for the date on which data is missing.

Procedure:

• SSH into the node where LEF is established for the device.

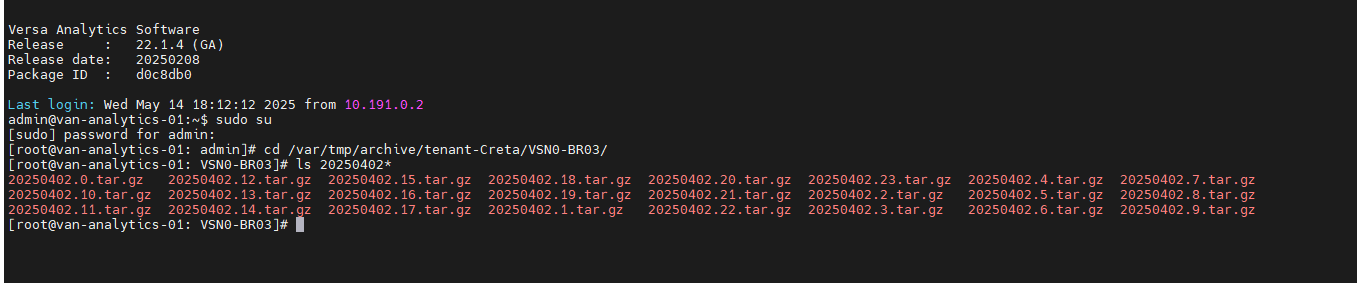

• Run the following commands (replace with the correct site name and tenant) to search for the missing date (YYYYMMDD):

  # sudo su
  # cd /var/tmp/archive/tenant-Creta/VSN0-BR03/
  # ls 20250402*


• Confirm that raw log files for the expected date are present.



Step 3: Verify Data in Database

Objective: Check whether data was ingested into the database.

Procedure:

Identify the Table:

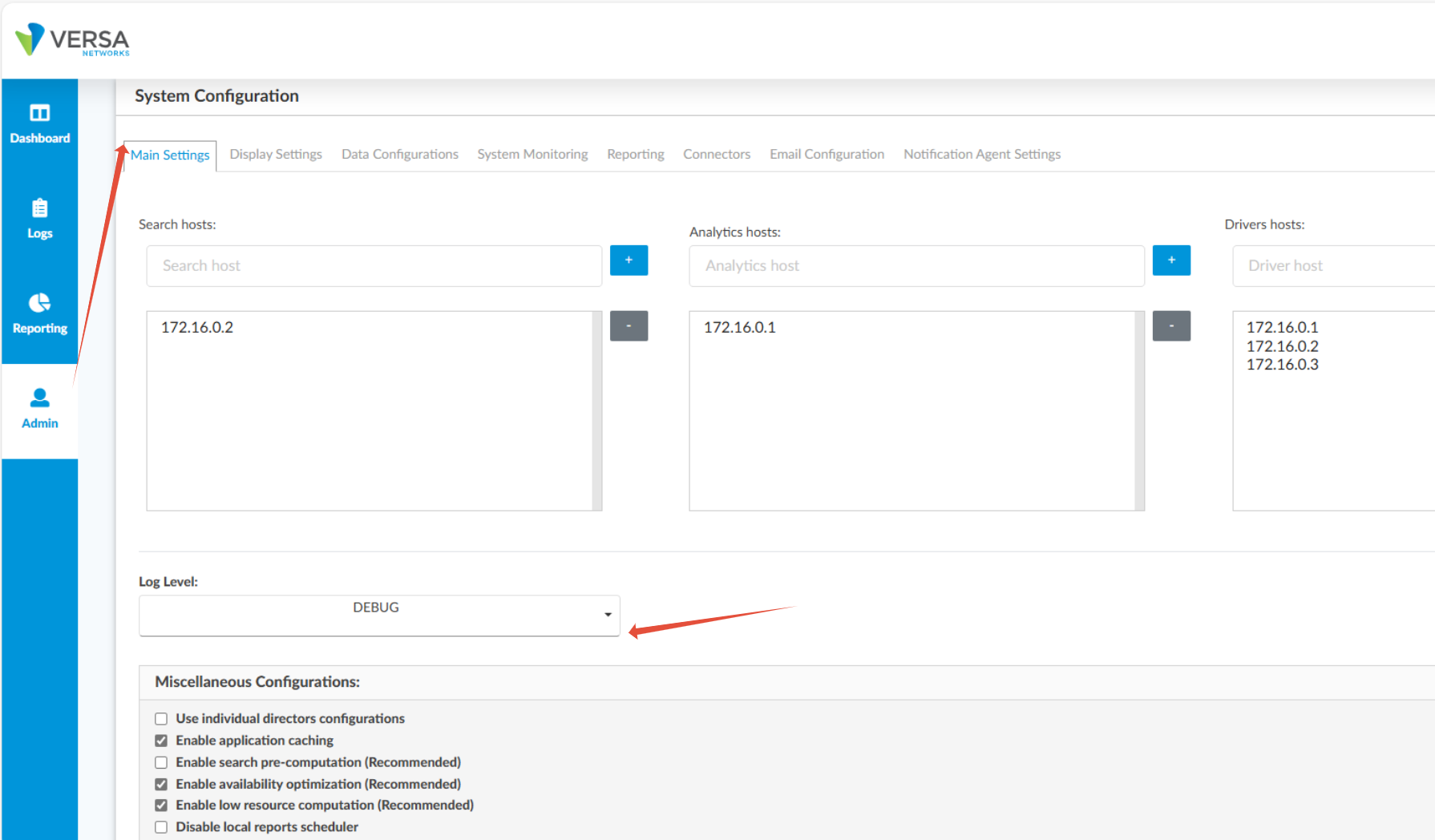

• Enable debug logging in the Analytics GUI.



• Run:

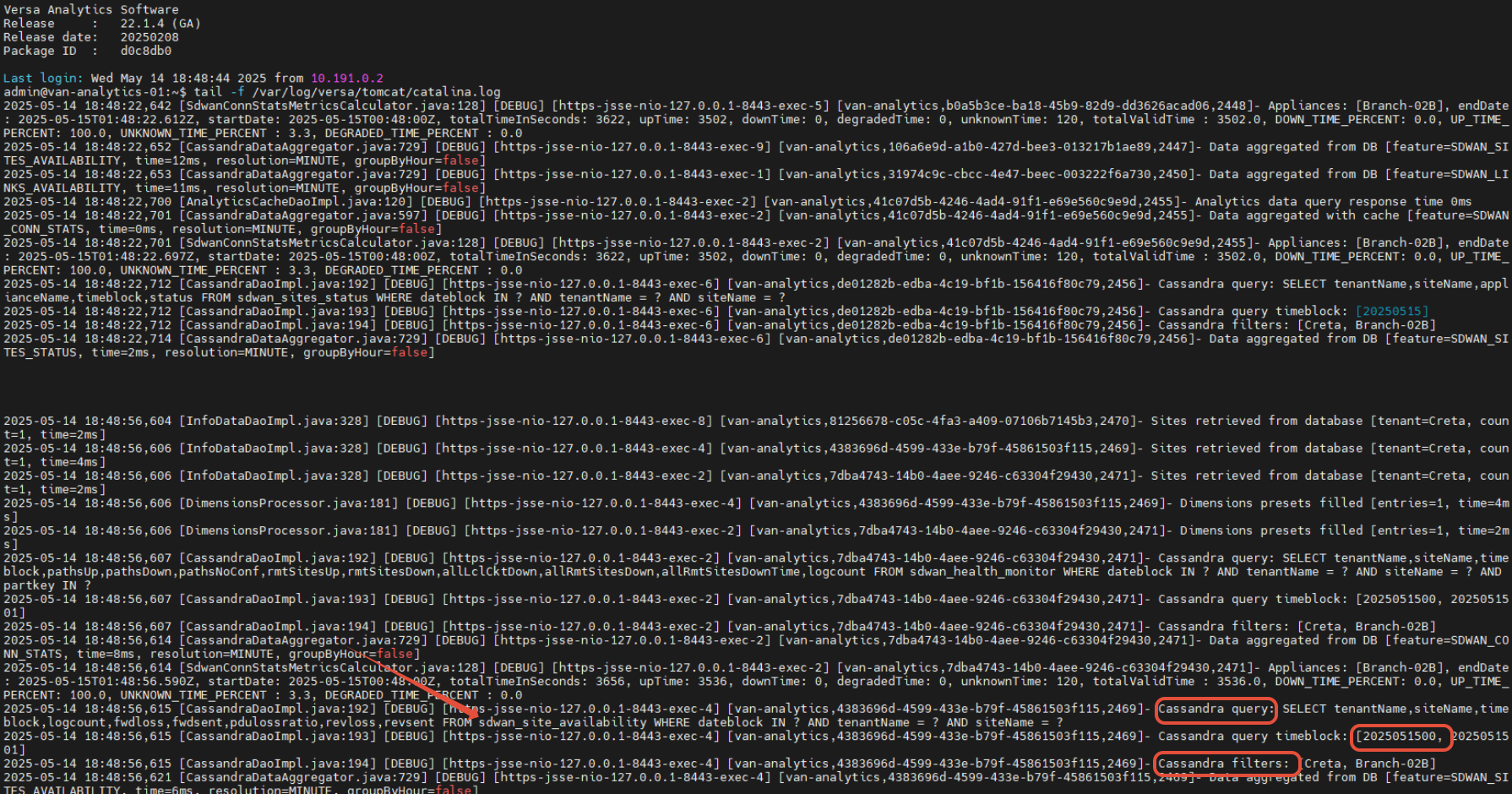

  # tail -f /var/log/versa/tomcat/catalina.log


• Reload the relevant graph to identify which table is being queried.

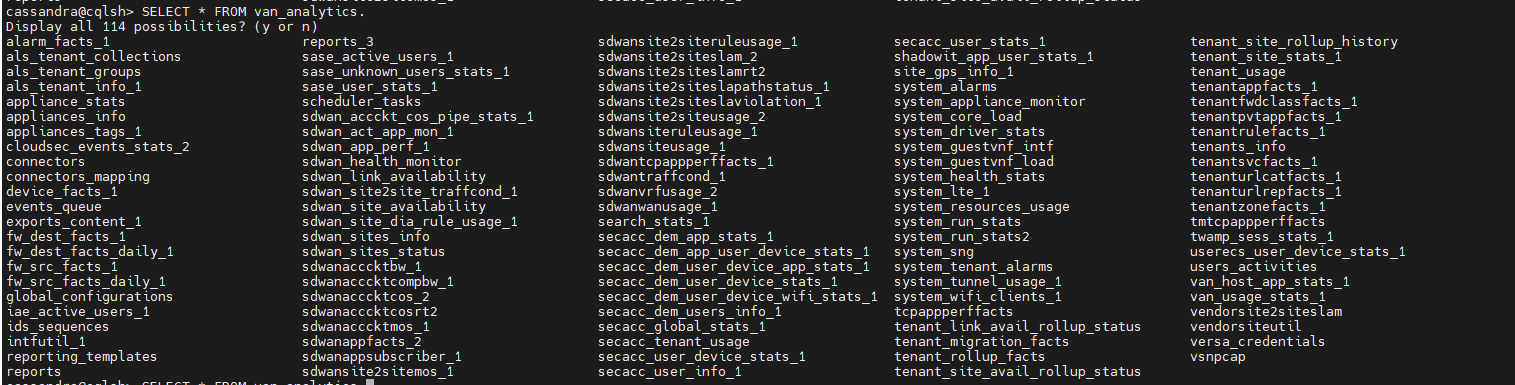

Different type of table in Cassandra DB.

Query Cassandra:

• Access the Analytics CLI:

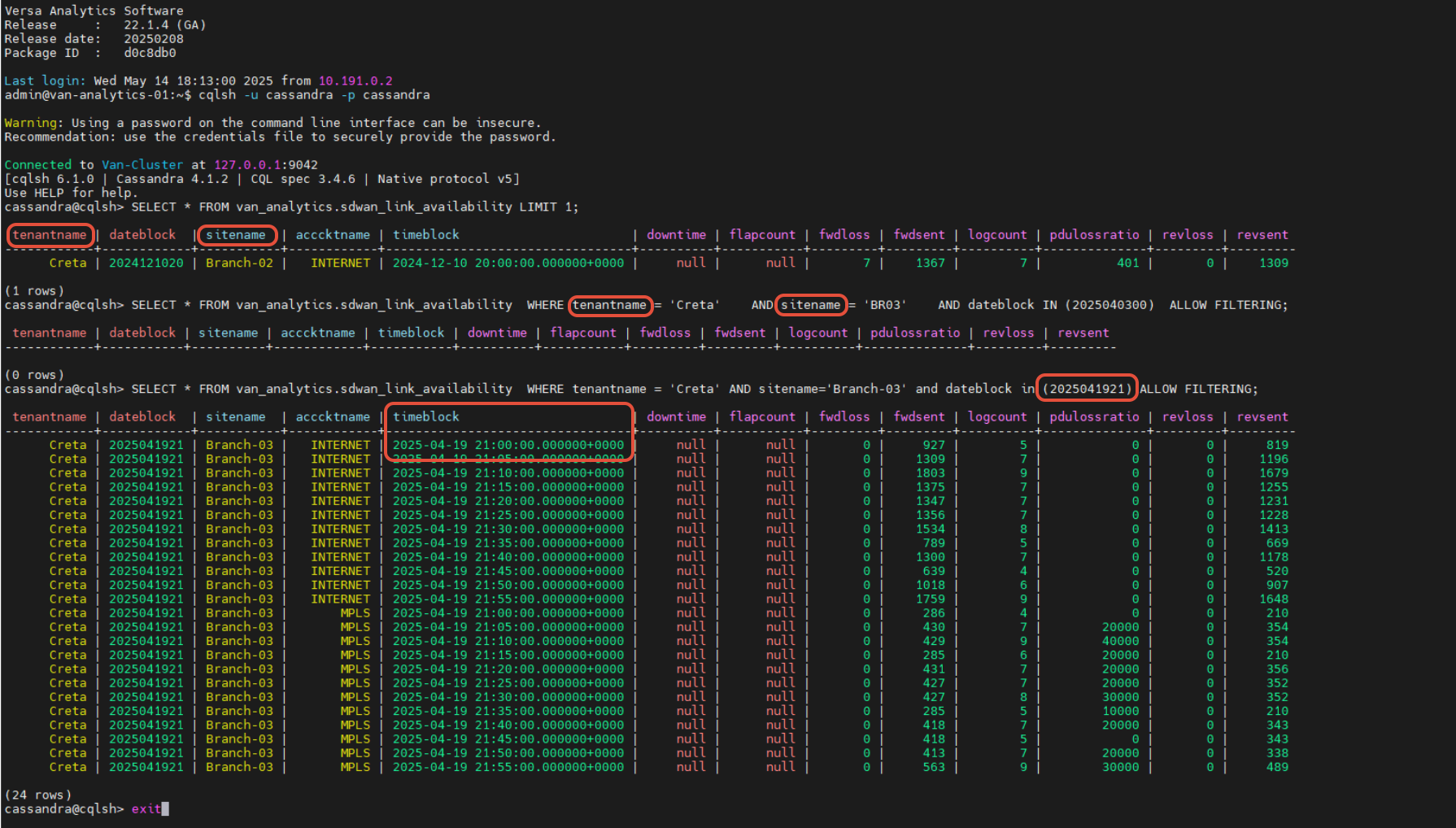

  # cqlsh -u cassandra -p cassandra


• Run a sample query to confirm table accessibility:

  SELECT * FROM van_analytics.sdwan_link_availability LIMIT 1;


• Query for the specific missing dateblock (in YYYYMMDDHH format).
  Note: Reference time is in UTC.

  SELECT * FROM van_analytics.sdwan_link_availability WHERE tenantname='Creta' AND sitename='BR03' AND dateblock IN (2025040300) ALLOW FILTERING;


Interpret Results:

• If no data is found, proceed to Step 4 to check for ETL errors.

Step 4: Check ETL Errors in Analytics GUI

Objective: Detect any ETL-related issues during data processing.

Procedure:

• Go to the Analytics Admin GUI.

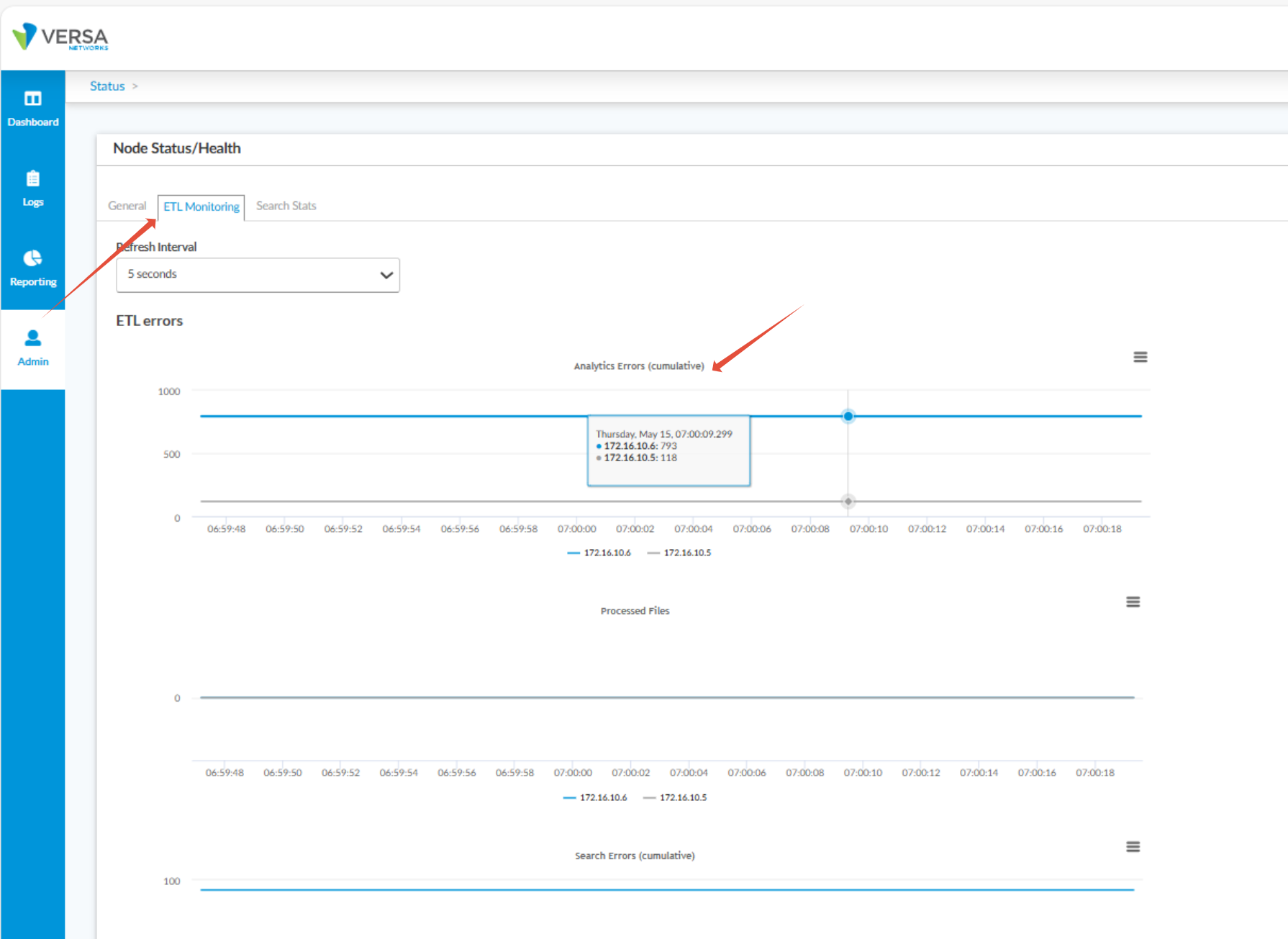

• Navigate to: Admin → System Status → Status → ETL Monitoring.

• Review the ETL Analytics Error Logs for any warnings or errors related to the missing date.
